How to backup a Synology to Backblaze B2

I recently wrote a post about moving from Nextcloud to Synology, in that post I mention how I’m backing up to Backblaze B2. This post explains how I configured that.

So you want to backup a Synology to Backblaze B2? Well, so does my friend and Fosstodon co-founder, Mike Stone who asked for more detail around how I backup to Backblaze B2 storage. Fosstodon has a limit of 500 characters and that wasn’t going to cut it, so I decided to write a post instead.

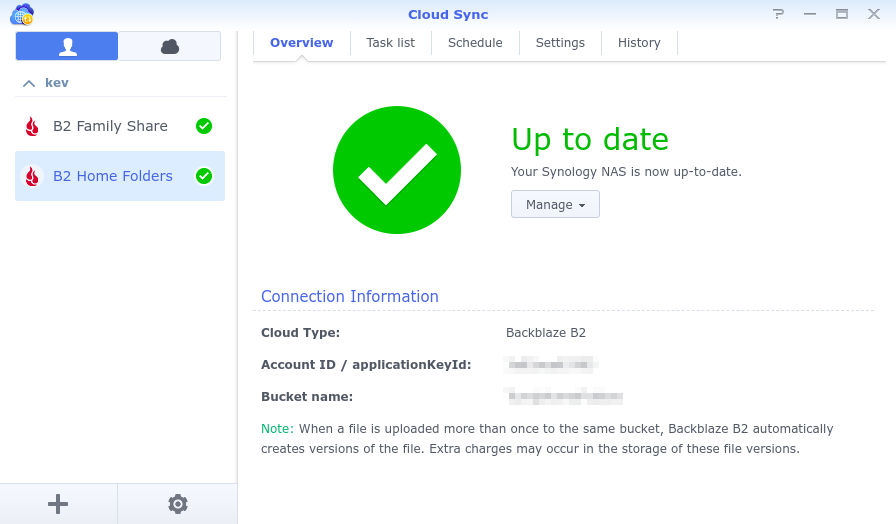

Synology Cloud Sync

So to backup to B2, I’m using the Synology Cloud Sync application. This is easily installed with a single click via the Synology Package Manager.

Personally I backup all user home folders, as well as our Family Share folder to B2. I could backup all the media on my Synology, but that would be very expensive. I tend to make sure that my crucial data is still available, even if I lose all my local data. Multimedia files aren’t crucial and can be replaced, so I’m comfortable with just having local backups for that.

Synology Cloud Sync

Adding a new backup

I’m not going to take you through the process step by step, as it’s pretty straightforward. What I will do though, is show you how I’ve configured my backups and what those settings mean.

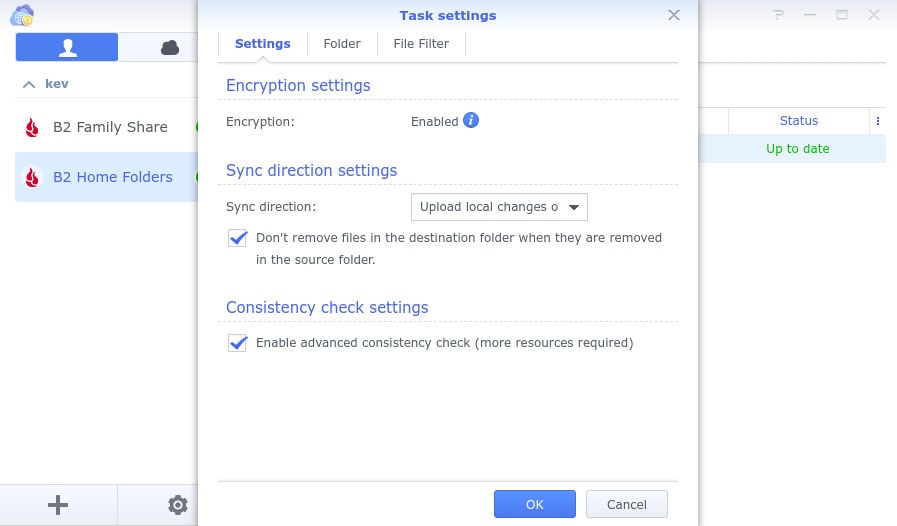

Here is a screenshot of the configuration for one of my B2 backup routines:

Cloud Sync Config

Encryption

When setting up the B2 backup routine, it’s very important to ensure encryption is enabled. This means that all of your data is encrypted at rest, so nobody except you can access it.

You will be asked to configure and encryption passphrase. Once configured, Synology will download certificates so you can decrypt your data later.

Keep both the certificates and passphrase safe. If you lose either of these, you will not be able to retrieve your data!

Sync Direction Settings

Set this option to “Upload Local Changes Only” and check the box that says “Don’t remove files in the destination folder…” Using both of these settings means that files will only sync one way – up to Backblaze. And if you delete a file, that deletion will not be synced.

Duplicates

Let’s say you have a spreadsheet you use to manage your finances. You add your monthly finances for January, then again in February. Cloud Sync will not overwrite your finances file with the new revisions.

Instead, Backblaze treats duplicated files as a new version. Now, this may result in you using more storage within your B2 bucket, but the cost probably won’t be significant. Plus it will allow you to roll back if you need to.

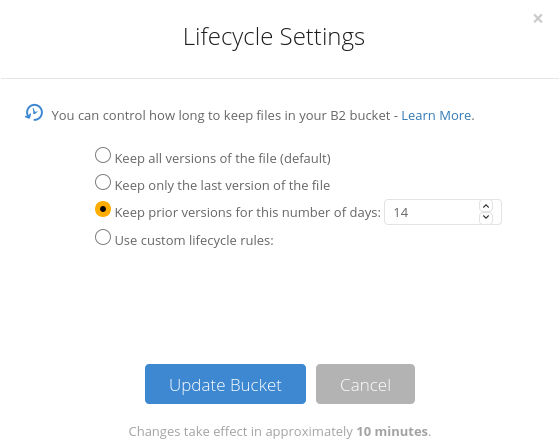

I personally set the Lifecycle Settings within my buckets to 14 days. This means that B2 will keep 14 days worth of versions for any file.

Backblaze Bucket Settings

Cost

Backblaze B2 is really cheap. For example, I have 2 buckets – one for home folders and the other for our family share. Over the 2 buckets, I have approximately 150GB of data stored in B2.

My invoice for January 2020 was just $0.39! Backblaze have an online calculator that should give you an idea of what backing up to their service will cost you.

Conclusion

This post should give you a good idea of how to backup a Synology to Backblaze B2. To be honest, it’s easy to configure and once it’s done, you can pretty much set it and forget it. Just make sure you do a test restore!

If you have any questions about this process, please feel free to get in touch with me.

Subscribe for more!

You will receive monthly emails with updates and previews of upcoming posts. To find out more, click here.

Please enter a valid email address.
That email address is already subscribed.
The security code entered was incorrect
Thanks for signing up!

«

»


Comments

Please read my commenting guidelines before posting a comment.

  1. For what it’s worth duplicati also runs well as a package on synology. I prefer a backup tool to a sync tool as I can restore etc through the package, not need to go the data repository manually to download the files. I have many clients with synology backing up to B2 via duplicati. It rocks!

    1. Oh, I didn’t know that. Thanks for the tip, I’ll definitely look at that!

  2. How are you avoiding excessive Class C charges from Backblaze? It appears that something has changed in Cloud Sync that causes it to do b2_list_file_names transactions constantly. Not only does this rack up the Class C charges, it runs my Synology hard drives without stopping. I changed my Cloud sync period from 60 to 3600 seconds, and set a schedule so it’s only syncing with B2 between 1am and 4am, but I still am racking up lots of Class C charges ($8 last month – about 4-5 times my previous rate with the same data).
